Master Fuel Management:  The Comprehensive Guide  to Fuel Flow Meters

Efficient fuel management is the key to improved fleet efficiency, reduced wastage and better cost savings in the automotive industry.  An automotive fuel flow meter provides precise measurement of fuel consumption across the entire fleet. This enables you to optimise your fleet operations, identify wastage and implement proven strategies  to improve fuel efficiency.

By accurately measuring and evaluating fuel consumption patterns,  fuel flow meters allow you to identify uneconomical driving patterns  and routes that consume excessive fuel – and enable you to take corrective actions. This will aid in remarkable cost savings and help minimise  the environmental impact of your fleet.

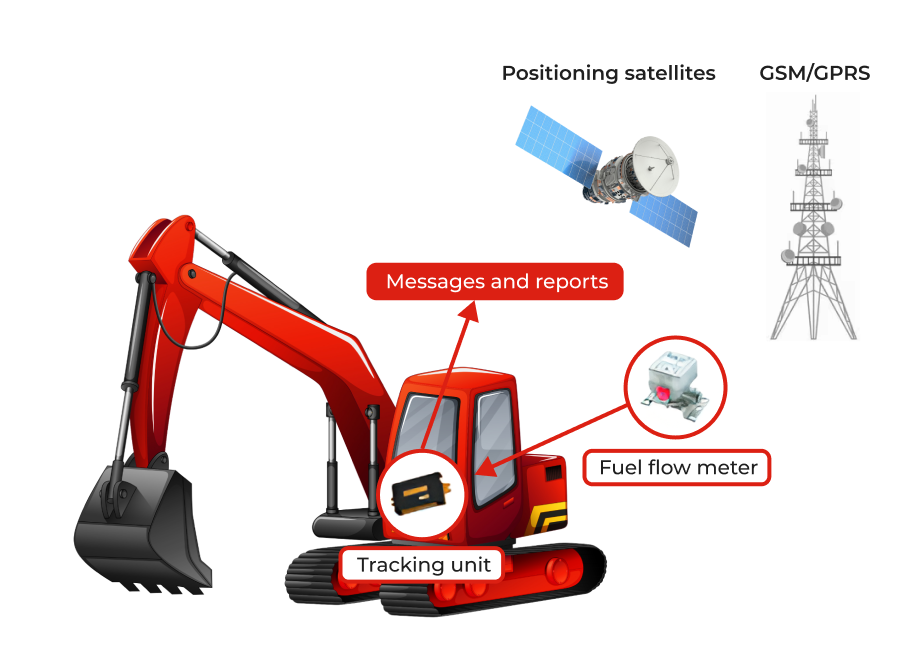

The fuel meter can be used autonomously or in combination with Escort Monitoring Systems Group’s wireless capacitive fuel flow sensor for more precise and real-time fuel consumption measurements. Let’s understand how a fuel flow meter can help revolutionise your fleet operations.

What is a Fuel Flow Meter?

Now every drop of fuel is under your control!! A fuel flow meter allows you to get accurate insights into actual fuel consumption and engine working hours, helping prevent misuse and promote accountability among your drivers. Accurate fuel management further enables fleet operators and transportation companies to optimise vehicle routes and reduce fuel wastage.

The device is designed to measure the volume of fuel that passes through the fuel line and to the engine in a given period. It typically comes with a visual display – either mechanical or digital – providing accurate measurements regarding fuel consumption. Advanced fuel flow meters can be installed along with fuel sensors to remotely monitor fuel consumption and identify wastage instantly. This matters because a fuel flow meter cannot detect fuel theft since it is installed in the fuel supply line and not inside the tank. Therefore, you need our capacitive fuel level sensors to identify and prevent pilferage and theft.

https://escortsensors.com/wp-content/uploads/2026/03/ba67fc0a92990ec946038a3129ff4bc7.png

Considering the soaring fuel prices, flow meters are widely gaining significance in the automotive industry. The device can be used for a wide range of fluid transfer applications, including diesel and gasoline. Some of the key capabilities of a fuel flow gauge are discussed herewith:

High fuel consumption data accuracy even at low fuel levels or flows. The device can measure fuel flow rates up to 200L each hour with an exceptional accuracy rate of +/-1%.
Various types of fuel flow meters can be used to measure the consumption  of different fluid types, including diesel, engine oil, gasoline, heating oil, etc.
The device is compatible for use mostly in heavy vehicles such as excavators and tractors. The complex shape of the fuel tanks in these types of vehicles makes it impossible to install capacitive fuel level sensors.
The user-friendly and compact design with an easy-to-read display screen provides real-time recordings of fuel flow, fuel consumption, vehicle running hours, and other data.
Fuel flow meters can operate on their own or they can seamlessly integrate with fuel management systems. When used in combination with our fuel sensors, they provide more accurate measurements – helping you improve efficiency and minimise costs.

Types of Fuel Flow Meters

Discussed here are the most popular types of fuel flow meters, ideal for the automotive industry.

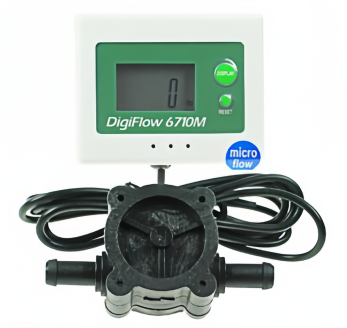

Turbine fuel flow meter
The primary component of this type of fuel flow meter is a turbine that rotates on an axis while the device records the flow rate as the fluid passes over it. The velocity of the fluid should be proportional to the speed of the rotating turbine. In digital automotive fuel flow meters, a sensor or magnet is attached to the turbine’s blade which sends a pulse to the computer device with every rotation. So, you can remotely monitor fuel consumption and flow rate at any time and from anywhere.

Single Chamber/Dual Chamber Fuel Flow Meter
A single-chamber device records the amount of fuel that flows from the fuel tank to the engine through the fuel supply line.  It may work autonomously or with an interface cable that transfers data from the internal memory to your fuel monitoring system.

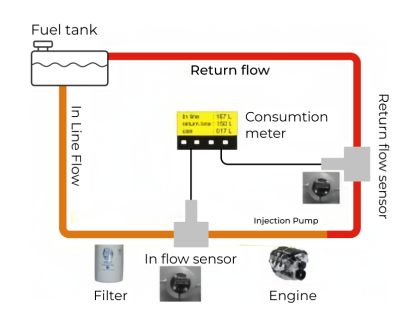

A dual-chamber, or differential fuel flow meter, precisely records fuel consumption by measuring the fuel’s volume difference when it flows through the fuel supply and return lines. To put it simply, it measures the amount of fuel that flows from the fuel tank to the engine and the volume of fuel that returns from the engine back to the tank. This ensures a more accurate measurement of fuel consumption monitoring.

Diesel Fuel Flow Meter
A diesel fuel flow meter records the flow rate of diesel in various types of vehicles. There are different types of diesel fuel meters available today, including turbine meters, positive displacement meters and ultrasonic meters. However, one of the best ways of getting accurate measurements is by installing our fuel flow sensors at the supply line and the fuel flow meter at the return line. By subtracting the difference in measurement, you can get the precise number.

Gasoline Fuel Flow Meter
A gasoline flow meter also works similarly to a diesel fuel flow meter, accurately measuring the precise amount of gasoline dispensed. The device may be based on various operating systems such as a rotating turbine, nutating disk or oval gear.

https://escortsensors.com/wp-content/uploads/2026/03/image1.png

https://escortsensors.com/wp-content/uploads/2026/03/image2.png

Benefits of Using Fuel Flow Meters

The objective of ESCORT Monitoring Systems Group is to ensure high levels of fuel efficiency, reduced wastage and more cost savings. That’s why we bring to you the most advanced fuel level sensors that provide real-time and accurate data on your vehicle’s fuel levels.

You can seamlessly integrate our fuel level sensor and a flow meter into your fuel monitoring system to collect insightful data and make data-driven decisions for effective fleet management. Let’s check out the benefits of using a fuel flow gauge:

Get real-time visibility into your fleet’s fuel consumption, allowing you to efficiently monitor fuel levels based  on engine running time.

Eliminate the need for guesswork  or manual monitoring and effectively plan your vehicle’s refuelling needs. This minimises the risk of running out of fuel at any time.

Fuel flow meters allow you to accurately measure fuel reconciliation. You can easily compare the amount of fuel dispensed with the total fuel consumed, allowing you to identify discrepancies or misuse. This way you can foster accountability among your drivers and prevent fuel theft.

Get valuable data to evaluate your vehicle performance and schedule maintenance likewise. By closely monitoring your vehicle’s fuel consumption patterns, you can identify unexpected increases  in fuel usage. This may be due to inefficient driving behaviours  or a mechanical issue.

By keeping a tab on your fleet’s fuel consumption, you can minimise wastage and save thousands of pounds on your annual fuel cost. Optimise your fleet operations and improve efficiency by reducing vehicle idling time, eliminating misuse and minimising wear & tear.

Here, it is important to highlight that fuel flow meters come with certain limitations when compared to capacitive fuel level sensors.

A fuel flow meter is difficult to install in most types of vehicles since they are set up in the fuel supply line, not inside the tank. It often requires complex wiring and connections as compared to a wireless fuel level sensor.
You need to constantly clean a flow meter due to the high levels of impurities in the diesel fuel.
Fuel flow meters can be very expensive, especially when they are installed in heavy vehicles and machinery like excavators or tractors.
Since it is installed in the fuel supply line, you cannot detect unexpected fuel drainage, pilferage or other malicious activities occurring in the fuel tank.

Combining our capacitive fuel level sensor with a flow meter can ensure nearly 100% precision in fuel management, helping you cut down your fuel costs by 15% – 30% and reduce fuel wastage by 90%!!

How to Choose the Right Fuel Flow Meter?

https://escortsensors.com/wp-content/uploads/2026/03/439px-td-ble-1.png

Choosing the right type of fuel flow meter can make a big difference in your fuel consumption measurements and overall efficiency. Here are some valuable tips for you:

Determine the fuel type. To pick the right type of flow meter, you first need to determine the specific type of fluid that you want to monitor. Fleet operators and transportation & logistics companies will require specific types of automotive fuel flow meters based on the type of fluid such as diesel, gasoline, engine oil, etc.
Consider Specific Parameters. The choice of fuel flow meter also depends on certain parameters such as the pressure, temperature, density, and pressure drop specific to the fluid. These factors  are likely to influence how efficiently the flow meter will work.
Check Installation Requirements. Different fuel flow meters have different operating mechanisms and installation specifications that you need to understand. You need to take into account various factors like valves, pipe bends and constrictions to ensure the flow meter operates efficiently  and provides accurate measurements. If you are considering using the flow meter in combination with a fuel sensor, go for reliable and reputable brands such as Escort TD-BLE.

Get in touch with our expert technicians who can guide you to find the right type of fuel flow meter based on your requirements.

Learn more about Fuel Flow Sensor.

Installation and Maintenance Best Practices

https://escortsensors.com/wp-content/uploads/2026/03/00343a9a38218d0800cb5dbcf8188316.jpeg

Precise flow meter installation ensures accurate measurements and optimised performance. Here is a quick sneak peek into installation and maintenance best practices:

Check fluid compatibility and installation requirements carefully before setting up the device. Using the right type of flow meter will help avoid corrosion and ensure longevity.
The installation location must not be exposed to direct sunlight and should have optimum temperature as per the manufacturer’s instructions.
The flow meter should be installed in the right orientation – vertical  or horizontal – according to the fluid flow direction.
For fluid flow installations, there should not be any vapour or air in the liquid. In gas flow measurement installations, the gas should not have any liquid droplets.
After installation, check for leaks and perform calibration once with the fluid pipe empty and again with the pipe full.
Regular inspections and cleaning are a must post-installation. Address any issues immediately to prevent inaccuracies in measurement.
Check gaskets, seals and O-rings for wear & tear or degradation.

Conclusion

With fuel prices rising, precise fuel usage monitoring across the entire fleet has become more important than ever. Fuel flow meters are designed to provide accurate measurement of fuel consumption as per actual engine runtime.

This enables you to detect fuel theft or wastage, optimise fuel distribution across the fleet, and achieve improved efficiency. With real-time insights into fuel consumption and misuse (if any), you can make informed decisions regarding increased cost savings and driver’s accountability.

For high levels of accuracy in fuel consumption measurement, integrate the flow meter into your fuel monitoring system powered by GPS-enabled ESCORT fuel sensors. Book a demo today!

Frequently Asked Questions

What is a fuel flow meter and how does it work?
A flow meter is a device that precisely measures the quantity of fuel flowing through a pipe, from the fuel tank to the engine. It captures the flow of diesel or gasoline in the supply fuel line and the return fuel line to determine total usage and account for wastage.

Why is it important to monitor fuel flow in vehicles?
Monitoring fuel flow in vehicles gives you complete control of fuel consumption, allowing you to detect fuel theft or misuse in the fleet. This helps cut down your fuel costs and improve efficiency. It also enables you to monitor engine operating time.

Can fuel flow meters be used with any type of fuel?
Yes; there are fuel flow meters specific to the type of fuel your vehicles use. So, you can choose diesel fuel flow meters or gasoline flow meters based on your requirements.

How do I install a fuel flow meter in my vehicle?
It is recommended to follow the manufacturer’s instructions carefully to install the flow meter. Make sure it is compatible with the fuel type and meets instruction requirements.

Where can I purchase a reliable fuel flow meter?
Always buy from reputable fuel flow meter manufacturers who ensure high levels of measurement accuracy and superior device performance. Consult Escort Monitoring Systems Group for one-of-a-kind wireless capacitive fuel level sensors that ensure improved fuel efficiency and cost savings.
