How Does a Water Level Sensor Work? Types, Principles & Applications

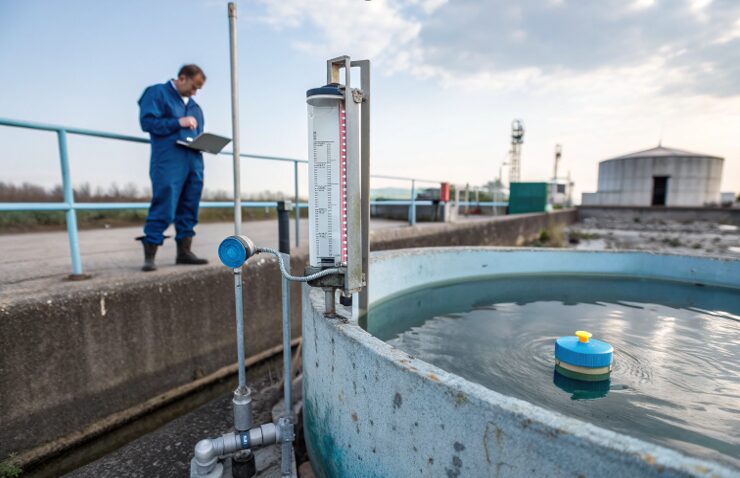

What Is a Water Level Sensor?

https://escortsensors.com/wp-content/uploads/2026/03/wraetszdtxfucygvuhlbjkln.jpg

A water level sensor measures the level of water in tanks, reservoirs, or any other thing holding water. These sensors are often used in fields including agriculture, manufacturing, and home management to keep water levels in a defined range. Its main function is to provide live information that can initiate steps such as starting pumps, disconnecting machinery, or issuing alerts when a specific water level is reached.

There are several types of water level sensors that utilize different types of technology to measure the water level. Some measure changes in electrical conductivity; some make use of ultrasonic waves, floats, or capacitive technology for accurate measurements.

How Does a Water Level Sensor Work?

The working principle of a water level sensor depends on the type of water level sensor. But the general concept is to measure the water surface position in a defined environment and then transmit this information to a monitoring system. This is essential for selecting the most appropriate type of water level sensor for a specific application.

Basic Working Principle of Water Level Sensors

Water level sensors also operate on a similar principle through changes in physical properties, like the conductivity, pressure, or distance between the sensor and the water surface. It uses the data to produce an output that can be read and used by an external system or directly to control some process mechanism, such as a pump or valve. For instance, in a water tank, when the level of water increases, the sensor sends a signal that your tank is getting filled. This sensor tells the system to fill the tank when the water level is below a certain point.

How Different Sensors Measure Water Level

Depending on which type of sensor you are using, the water level detection can vary. For instance:

The ultrasonic water level sensors are operated by sending sound waves that reflect from the water surface and return to the sensor. The distance between the sensor and the water surface is calculated from the time for the sound wave to return.
Sensors can be classified based on their working principle, such as float-based sensors and non-float-based sensors. The float, which floats on the water, moves up or down as the water level changes, opening or closing a switch or signaling.
Capacitive sensors measure changes in capacitance variation between two conductive plates as the level of the water changes. This type of level sensor has high accuracy when reading the water level and works on a non-contact basis. Submersible sensors are positioned in the water directly and measure the pressure induced by the water column above the sensor. The deep tank or well-suitable sensors.

Different kinds of sensors are used, with each sensor type having its own merits, which are selected based on the application need, considering accuracy, cost, environmental conditions, etc.

Types of Water Level Sensors

Close up of blue barrels standing with water drops on it

Water level sensors come in several different forms, each suited for particular needs or environments. Let’s take a closer look at the most commonly used types of water level sensors.

Ultrasonic Water Level Sensor

These sensors are used to measure the distance between the sensor and water by emitting sound waves. They perform their tasks by transmitting ultrasonic waves that move through the air, hit the surface of the water, and then reflect back. The sensor measures the time it takes for the wave to return, which gives an accurate measure of water levels.

Advantages:

Non-contact measurement
Highly accurate and reliable
Best suited for tanks of different sizes and shapes

Float Water Level Sensor

The simplest and most basic design to measure the water level is a float water level sensor. This sensor is made out of a float mechanism that emerges and descends up and down the water column as the water level changes. It is usually attached to a mechanical or electrical switch that gets turned on when the float arrives at specific positions.

Advantages:

Easy to install and maintain
Dependable at a small scale
Widely available and cost-effective

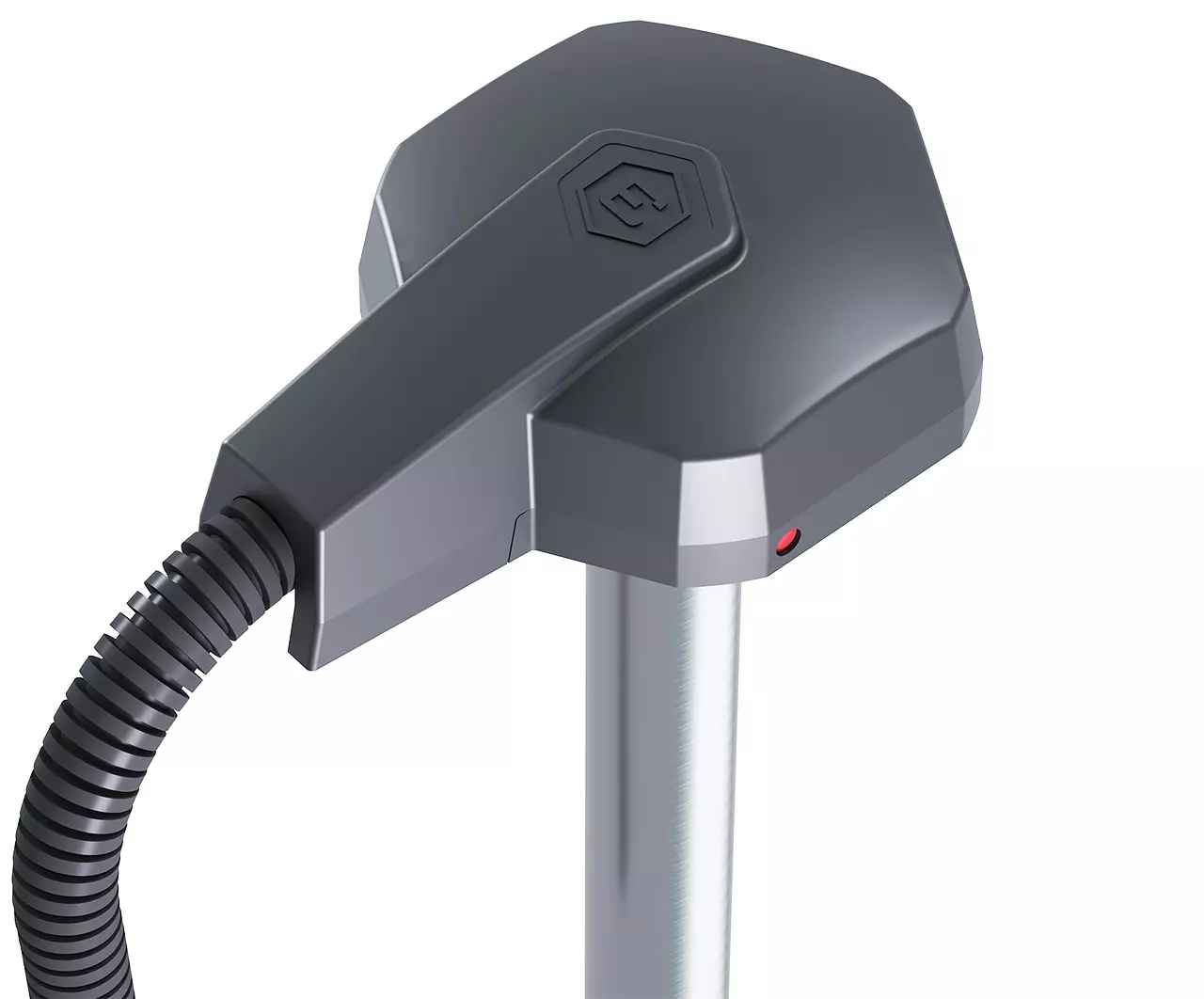

Capacitive Water Level Sensor

https://escortsensors.com/wp-content/uploads/2026/03/td-500_u1-jpg-1.webp

The water level is detected through capacitive sensors that measure capacitance changes between two plates, which can be located near or inside the tank. As the water level increases, the capacitance changes, and this change is used to measure the water level.

Advantages:

Precise and sensitive
Can sense the water levels without making direct contact
Designed for monitoring the water level inside small tubs or tanks

Learn more about Escort water level sensor ALS.

Submersible Water Level Sensor

Submersible water level sensors are installed directly into the water and measure the pressure created by the water column. These types of sensors are robust and operate in extremely harsh levels, so they are perfect for deep tanks or reservoirs.

Advantages:

Perfect for deep water tanks or wells
Less susceptible to our surrounding environment
Gives precise pressure readings

Water Tank Level Sensor

A water tank level sensor is used for monitoring water levels in tanks. Such sensors may employ different technologies, such as floats, ultrasonic waves, or pressure sensors. The use of solenoid valves is also common in household and industrial settings to manage the filling and draining of water tanks.

Advantages:

Reliable for managing water distribution systems
Can be used with automated control systems
Helps prevent overflows and dry running of pumps

Applications of Water Level Sensors

https://escortsensors.com/wp-content/uploads/2026/03/adfsdgvsbf.jpg

Water level sensors serve numerous purposes, from home use to process flow and large-scale industrial operations. Let’s explore some of the common areas where these sensors can be incredibly helpful.

Home and Industrial Water Level Monitoring

In households and industries, water level sensors detect the water level in tanks, wells, and reservoirs. These are highly useful at home to avoid overflow or dry runs in water tanks, which can damage or cause operational issues. In the industry, water level sensors are indispensable in maintaining a stable water level in cooling towers, boilers, and sewage plants to provide systems with a continuous water flow.

Water Level Indicators for Tanks and Reservoirs

Sensors that monitor water levels in tanks and reservoirs, among other uses, can be crucial parts of large-scale water storage systems, providing real-time data for the operators. Water level monitors measure the levels of water to ensure they are in an appropriate range and send timely warnings in case of excessive water leakage or low levels to prevent the shutdowns of a water supply.

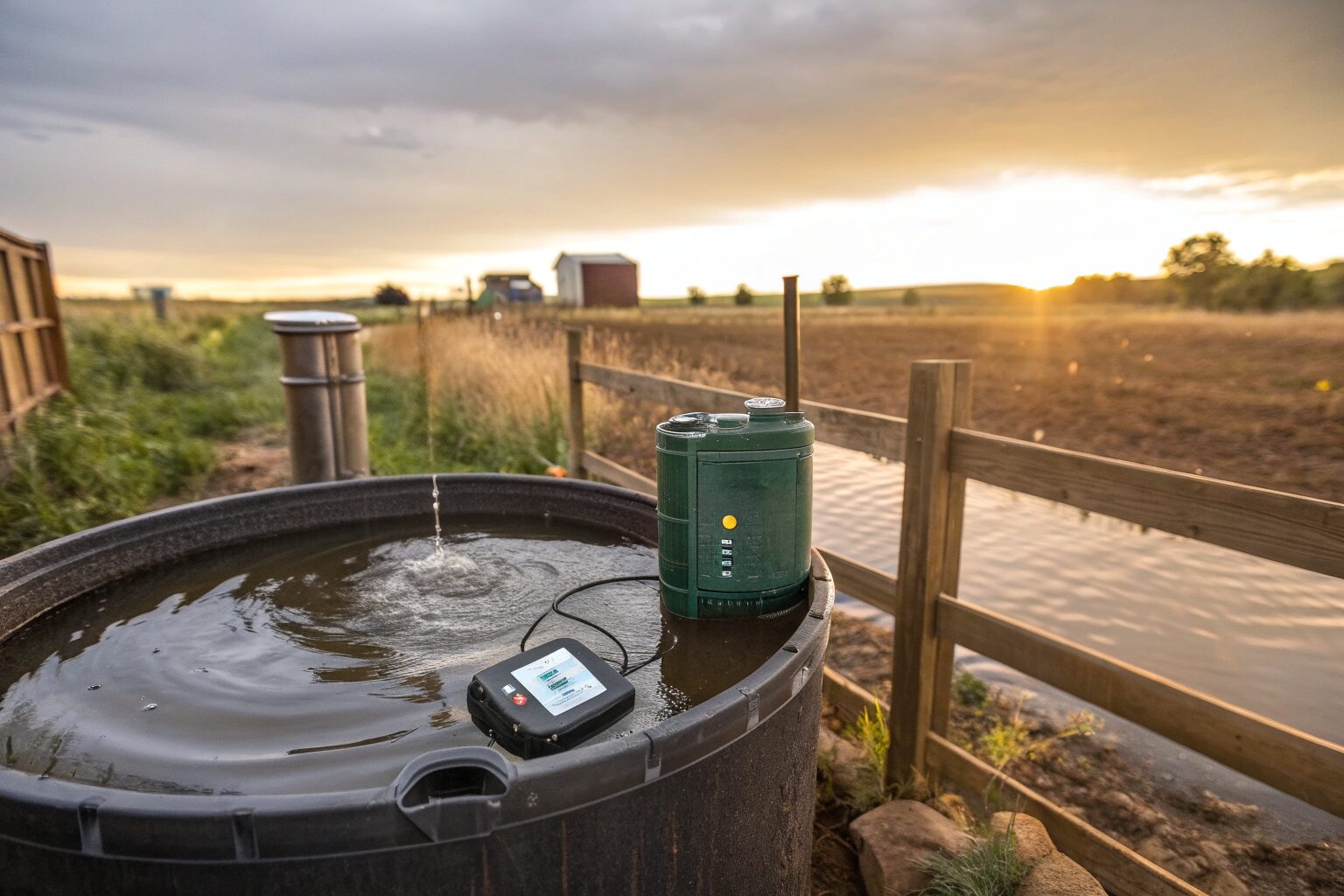

Water Level Monitoring in Agriculture and Irrigation

For example, in agriculture, water level sensors help maintain optimum water levels in reservoirs, ponds, and irrigation systems. They help farmers to ensure the proper amount of water supply to crops, avoiding both over-irrigation and water scarcity, which can damage crops.

Conclusion

A high-speed water level sensor is a vital instrument in the process of measuring the water level in different industries, ensuring the smooth operation of water utilities. Selecting proper sensors can avoid heavy maintenance for all types of water systems: residential, industrial, and agricultural.

Frequently asked questions

Why Is My Water Sensor Not Working?
This means that a faulty sensor, a bad USB connection, or a problematic power supply may prevent the water sensor from working at all. It’s also possible the sensor just needs to be thoroughly cleaned — especially if it’s in a dusty or dirty environment or if debris has found its way inside.

How Long Do Water Sensors Last?
The lifespan of a water sensor varies by type, use, and conditions in the environment. Ultrasonic sensors can last for years on average, while float sensors have a limited lifespan as they undergo wear and tear. With basic maintenance, your water sensor can last for many years.

What Type of Sensors Are Used for Water Level?
Ultrasonic, float-based, capacitive, and submersible sensors are the most common types of water level detection sensors. Each type of sensor has its own benefits, and the option will depend on the use case and surroundings.

Is the Water Level Sensor Input or Output?
Water level sensors are input devices because they send information to the control system or monitoring device. The data they transmit can initiate actions including filling or emptying a tank, switching pumps on or off, or warning operators about unusual conditions.
