WIRELESS TILT & ROTATION SENSOR Escort DU-BLE

Bluetooth Low EnergyCompact sizeEasy install

Monitor the tilt and rotation of nearly any moving part of your machinery – all without cables.

Contact Us

Watch Video

DU BLE. Connection. Configuration. Use.

European conformity CE
The quality management system complies with ISO 9001:2015

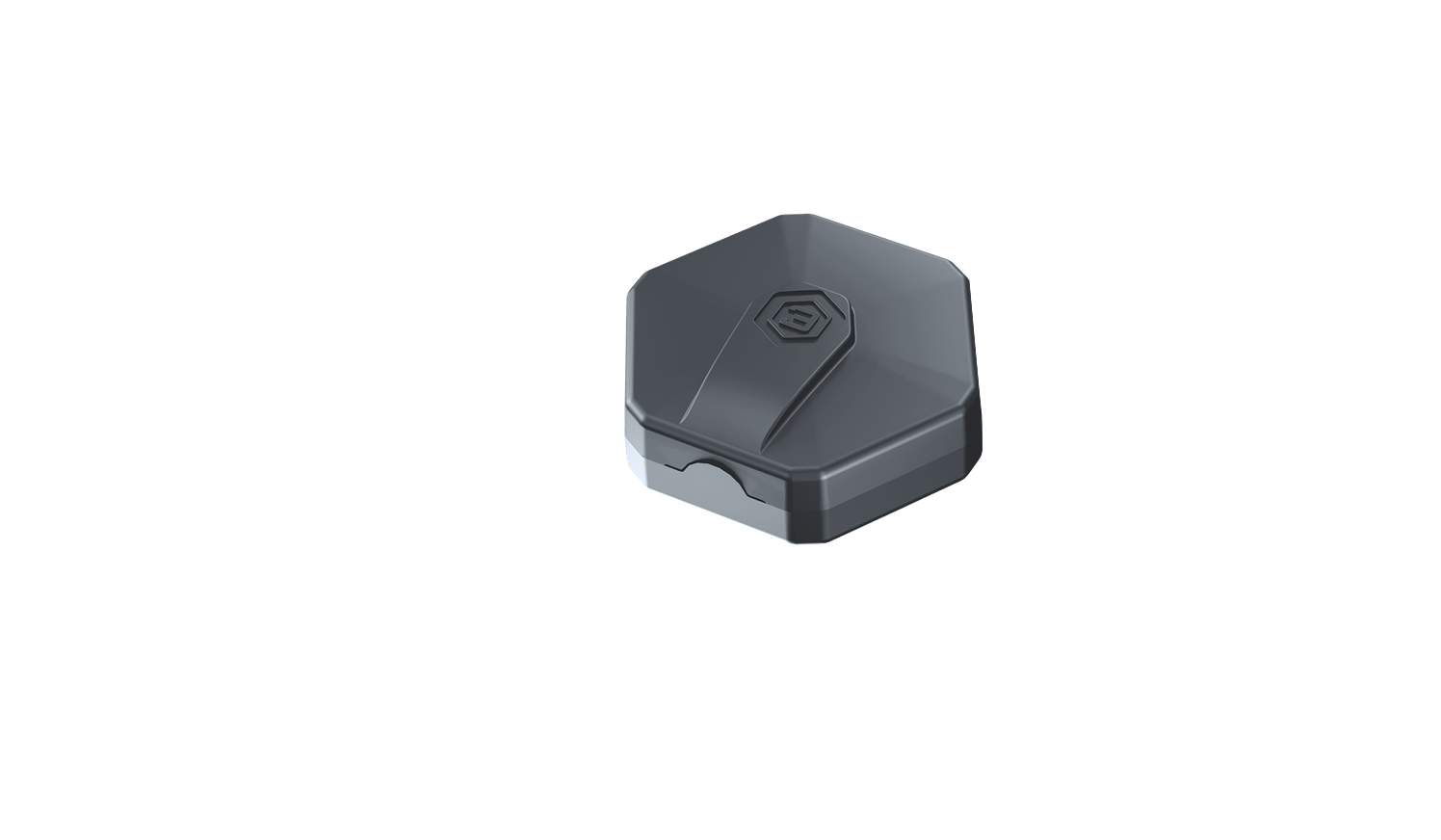

Escort DU BLE Wireless Tilt & Rotation Sensor for Fleet Safety and Load Monitoring

Wireless tilt&rotation sensor Escort DU BLE is engineered for real-time detection of vehicle orientation changes in demanding environments like construction, logistics, and heavy machinery. Utilizing Bluetooth Low Energy (BLE) technology, this compact device delivers precise ±0.5° tilt accuracy and 360° rotation tracking, with IP67 protection against dust, water, and shocks — ideal for cranes, excavators, dump trucks, and road trains to prevent accidents and optimize load stability.

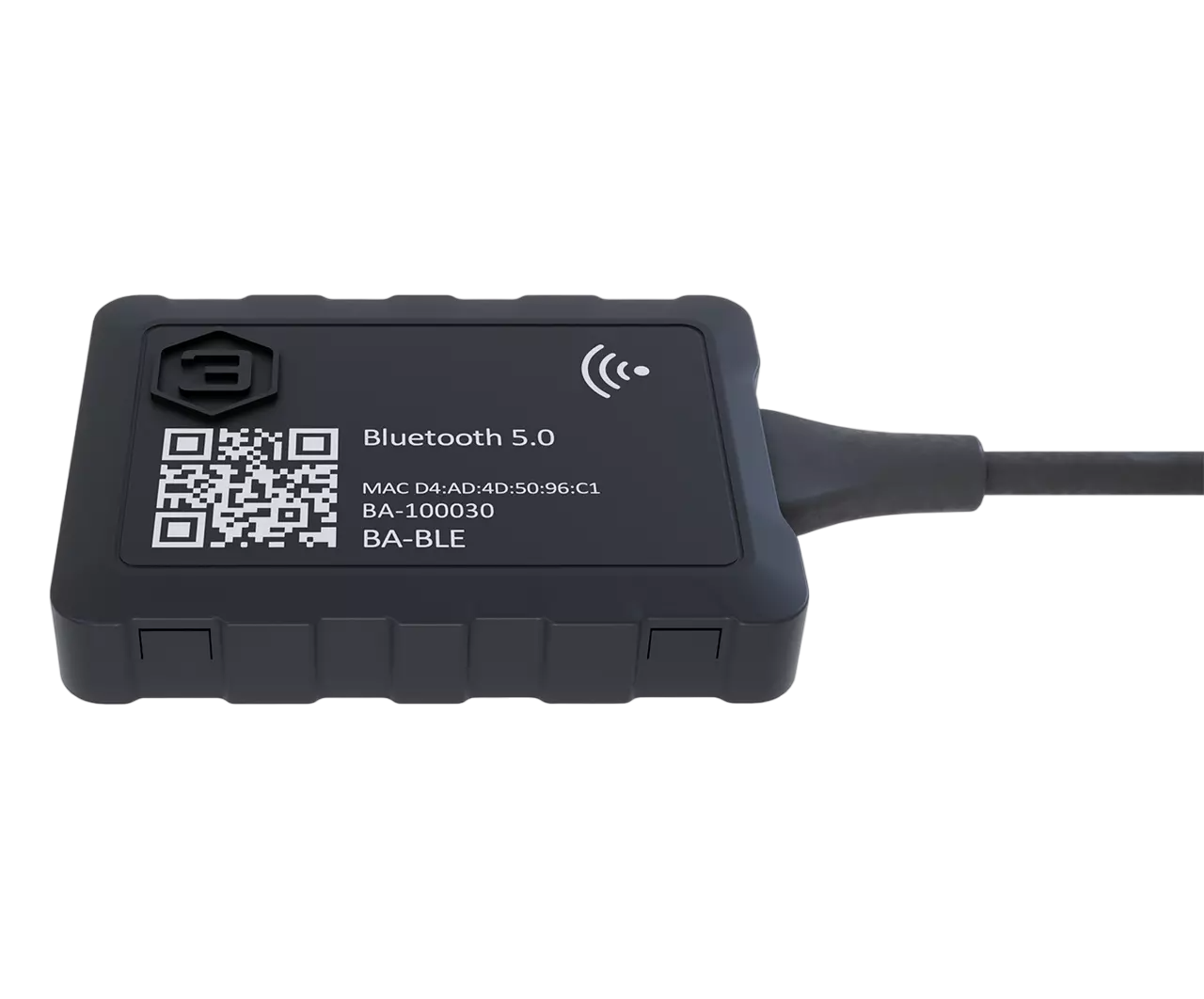

Seamlessly integrate Escort DU BLE with GPS/GLONASS trackers via BLE-BASE adapters or direct BLE support, enabling anti-rollover alerts, operational analytics, and fuel efficiency insights up to 10 meters away. With a 5+ year battery life and effortless wire-free installation, it empowers fleet managers to enhance safety, reduce downtime, and combat unauthorized usage — upgrade to Escort DU BLE for unmatched wireless precision today.

Escort DU-BLE Main Advantages

Widespread use thanks to two rotation modes – horizontal and vertical

Quick, cable-free installation

Easy setup via mobile app

Reliable Bluetooth data transmission using the Escort BLE protocol

Compatible with leading telematics platforms and trackers

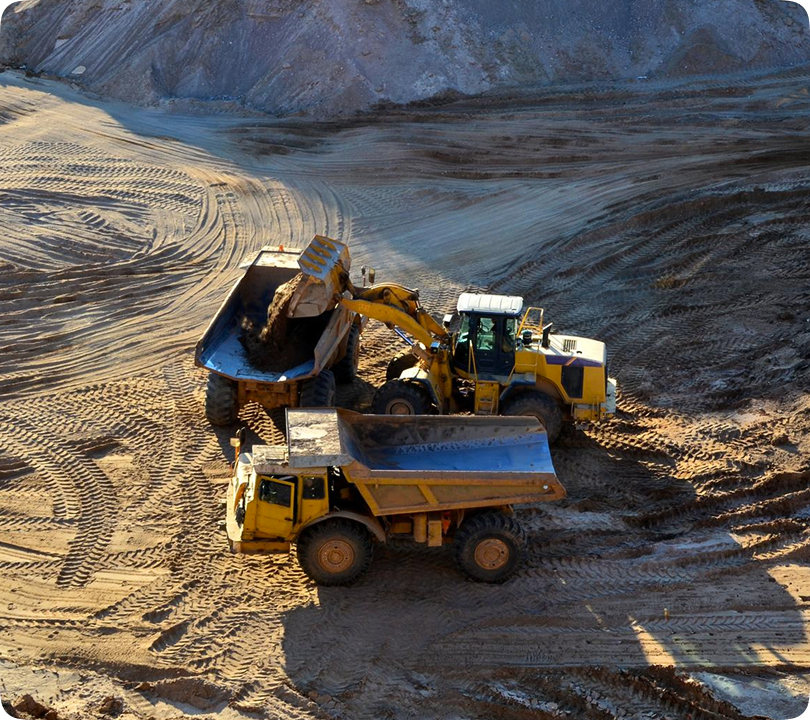

Ideal for concrete mixers, graders, dump trucks, excavators, cranes, garbage trucks, and beyond.

Datasheet

Radio channel frequency
2,4 GHz
Power supply voltage
3 … 3,7V
Current, no more than
17 мА
Data exchange output
Bluetooth LE (BLE)
Receiver sensitivity / transmitter power
-96 dBm / +4 dBm
Data exchange protocol
Escort BLE
Range (under normal operating conditions in absence of interference and obstacles when working with the BLE-RS485 adapter)
10 meters
Margin of error
±1°
Operating conditions:
– ambient temperature
-45 … +50 °С
– ambient atmosphere pressure
84 … 106,7 kPa
Ingress protection marking
IP69S
Explosion proof mark
0Ex ia IIB T6X
Dimensions, no more than
100х100х50 mm
Weight, no more than
0,3 kg
European conformity CE

European conformity CE

The quality management system complies with ISO 9001:2015

The quality management system complies with ISO 9001:2015

Connection Diagram

01

Mount the sensor

Install the sensor in your chosen location. Thanks to its wireless design, the installation is quick and simple.

Watch The Instruction
02

Connect the Sensor to Your Tracker

Pair the sensor with your GPS/GLONASS tracker. Escort DU-BLE is compatible with most major tracker brands.

03

Configure and Calibrate Using the App

Open the Escort Configurator app to set up calibration and adjust the sensor in 5 steps.

04

Use the data in your software

Once paired and configured, the sensor will transmit data to your tracking system for real-time monitoring and analysis.

Documents

View all documents

Escort DU-BLE Datasheet

Document description

Document

21 December, 2025 / ver 1.0 / EN

FW for DU-BLE (previous housing)

Document description

Document

21 December, 2025 / ver 1.0 / EN

FW for DU-BLE (current housing)

Document description

Document

21 December, 2025 / ver 1.0 / EN

Escort Configurator mobile app

Document description

Document

21 January, 2026 / ver 1.0 / EN
