SMART GPS Tracker + Fuel Level Sensor Escort TD-Online

Bluetooth Low EnergyCompact sizeEasy installation

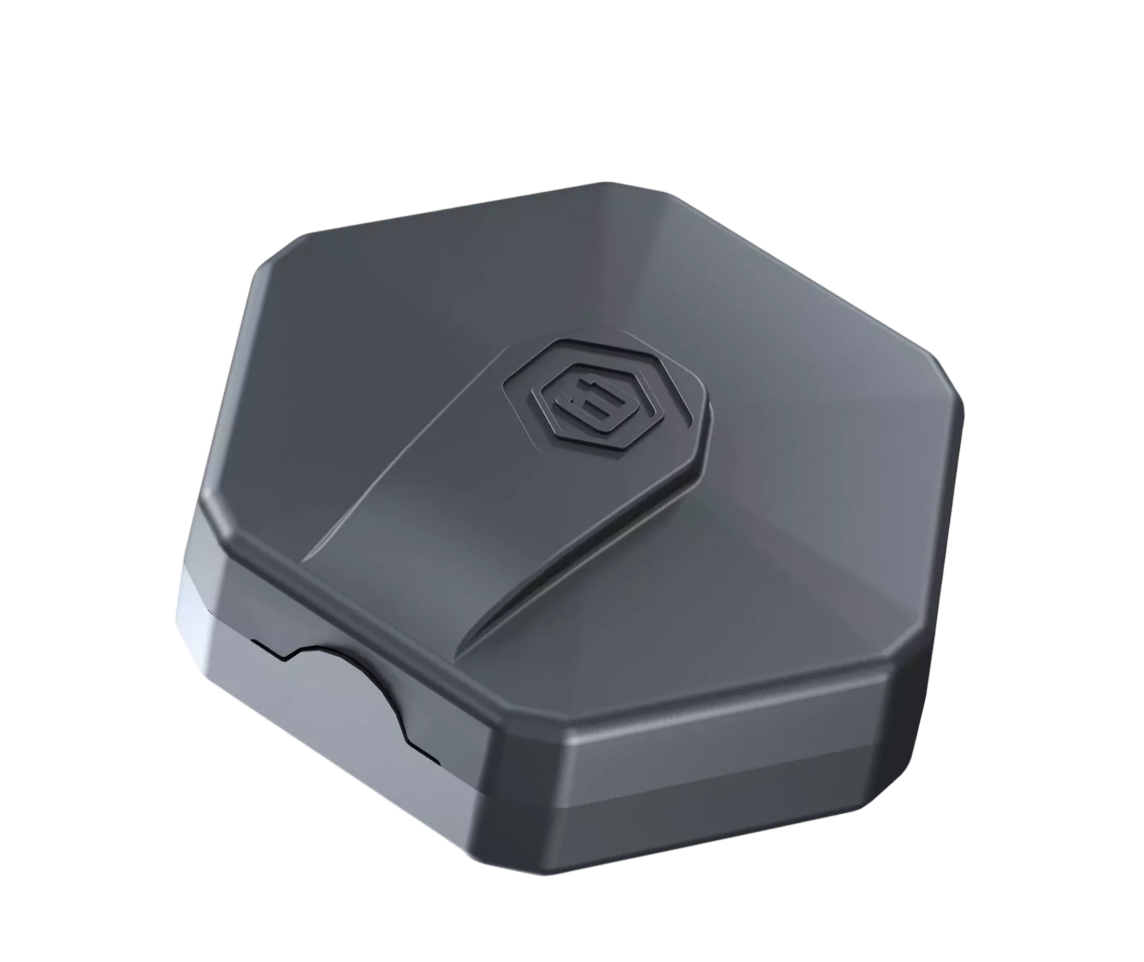

A smart all-in-one device that combines a high-precision GPS tracker with an advanced fuel level sensor, built-in black box, and 3D accelerometer.

Contact Us

Watch Video

How to Install Escort Fuel Level Sensors

The quality management system complies with ISO 9001:2015

Escort TD Online GPS Fuel Level Sensor & Telematics Device for Precise Fleet and Asset Tracking

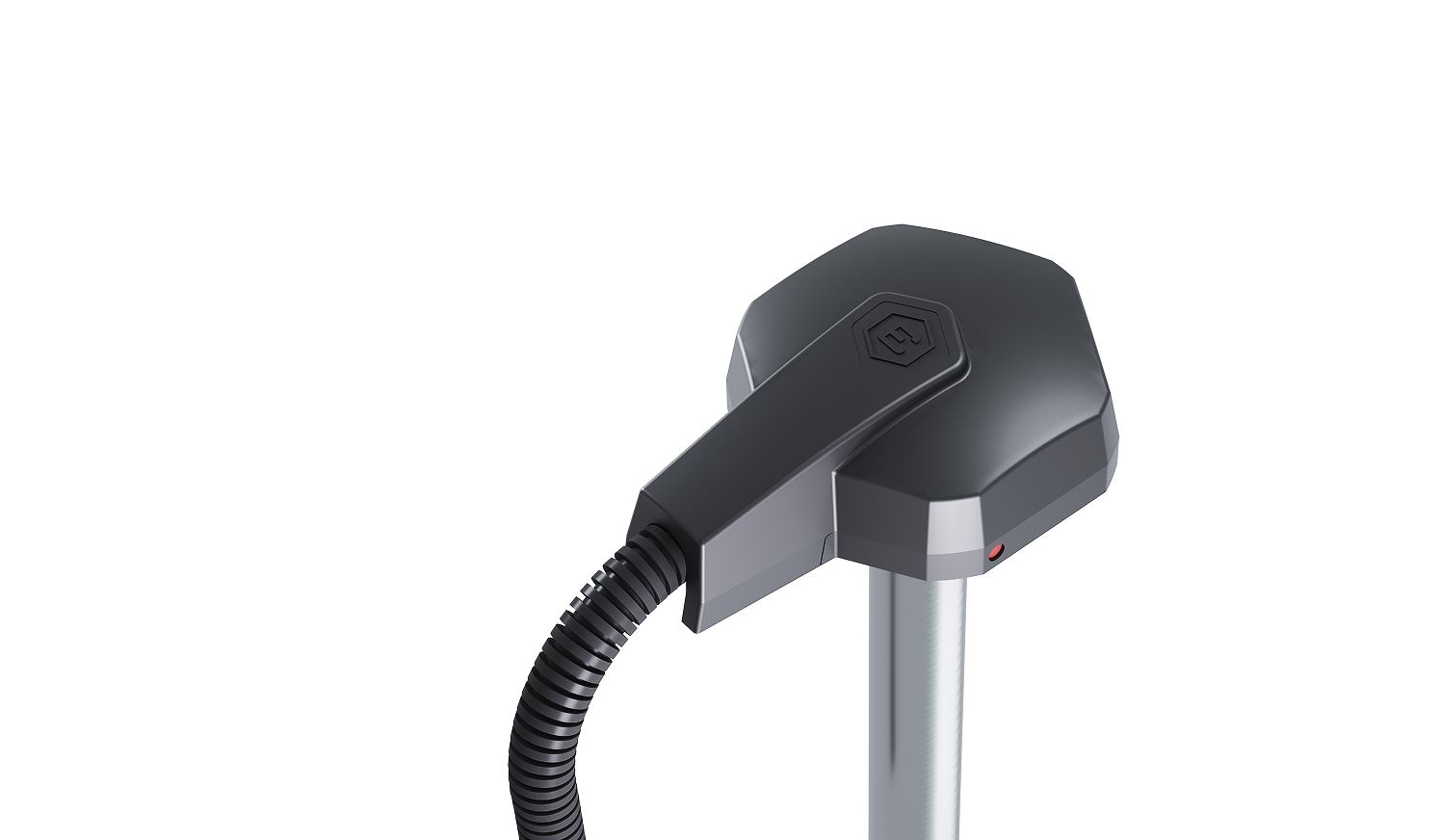

Escort TD Online is a next-generation GPS fuel level sensor and vehicle telematics device that combines a high-precision capacitive fuel sensor, smart GPS tracker, black box, and 3D accelerometer in one compact unit. Designed for fleet fuel monitoring and asset tracking, it offers cost-efficient, plug-and-play installation in under 40 minutes, simple Bluetooth configuration via app, and reliable operation in harsh conditions thanks to IP69S protection and a wide temperature range from -45° to +50°С. Supporting 2G and 4G GSM, RS485, and BLE, it seamlessly integrates with Escort sensors and leading GPS monitoring platforms to deliver accurate data on fuel level, movement, driver behavior, and events.​

Ideal for fleets with multi-section vehicle tanks, diesel generators, and stationary fuel storage, Escort TD Online enables precise fuel control, smooth real-time tracking, and enhanced cargo and driver safety with a hidden GPS tracker and built-in black box function that stores data during signal jamming and uploads it once communication is restored.

Escort TD-Online Main Advantages

Plug&Play: Install – configure - have your data on the platform

Budget-friendly price for device and for installation

Fast & Easy Installation in under 40 minutes.

Simple Configuration through App in 4-5 steps

Extended functionality: smart fuel level sensor with hidden GPS tracker + black box + 3D accelerometer

Reliable & Accurate

Smart GPS Tracker + Fuel Sensor with black box and 3D accelerometer – all in one device

Unlike standard BLE sensors that require a telematics terminal, TD-ONLINE operates as a fully independent device. Its integrated GPS and communication modules allow it to send both fuel level data and location data directly to your monitoring platform — no external hardware or terminal required.

Datasheet

Supply voltage
12 … 36V
Current consumption, at supply voltage of 12 V, no more than
0.3А
The measurement error in the working area is no more than
1%
Interfaces:
GSM
2G/3G/4G
Bluetooth
BLE
RS485
Modbus/LLS
Protocol for communication with an external server
Wialon IPS
Navigation receiver
GPS/Glonass
Sim card type
Micro Sim
Degree of protection of the shell according to GOST 14254
IP69S
Protection against electric shock according to GOST 12.2.007.0
type III
Operating conditions:
– ambient temperature, °C
– 45 … + 50 °С
– maximum ambient temperature, °C
– 60 … +85 °С
– atmospheric pressure, kPa
84 … 106,7 kPa
– maximum atmospheric pressure, kPa
57 … 110 kPa
Overall dimensions, no more than mm
90x90x(L+38)mm, where L is the length of the measuring device in mm. The nominal length of the measuring device is indicated on the label (glued into the passport)
The quality management system complies with ISO 9001:2015

The quality management system complies with ISO 9001:2015

Connection Diagram

01

Sensor Installation

Mount the sensor on a clean, empty tank. Wireless installation is quick, typically taking only 1.5 hours.

Watch the Instruction
02

Configure and Calibrate in the App

Use the Escort Configurator app to set up calibration. You can also apply a mathematical calibration method within the app.

Learn more
03

Utilize Fuel Data in Your Software

Monitor sensor readings, test at various fuel levels, and activate alerts for events like sudden drops or low fuel levels.

Documents

View all documents

Datasheet TD-Online

Document description

Document

18 December, 2025 / ver 1.0 / EN

Escort Configurator mobile app

Document description

Document

21 January, 2026 / ver 1.0 / EN
