Marine Fuel Flow Meter: Improve Boat Efficiency with Fuel Flow Gauges and Sensors

https://escortsensors.com/wp-content/uploads/2026/03/859a55515cb54626ab4c4fea06fc930f-jpeg.avif

Set sail with confidence by optimizing your boat’s fuel efficiency using the latest marine fuel flow meters and gauges. Learn how to monitor fuel usage accurately and save on your maritime adventures.

Maximising Maritime Fuel Efficiency with Advanced Fuel Flow Meters

https://escortsensors.com/wp-content/uploads/2026/03/964642d4cca73eb37359ee57dcb4cda8.jpeg

In the era of efficiency and sustainability, the maritime industry across the globe is constantly seeking cutting-edge solutions to streamline their fleet operations and reduce costs. In this scenario, the marine fuel flow meter has emerged as a complete game-changer. The high-tech device enables marine operators and recreational boat owners to closely monitor fuel consumption, eliminate inefficiencies and achieve cost savings.

By monitoring your marine fleet’s fuel usage in real-time, you can make informed decisions and implement strategies that help improve fuel efficiency and maintain sustainability. At Escorts Monitoring Systems Group, we know that every drop of fuel counts in your industry. Therefore, we give you valuable insights into the latest marine fuel flow gauges and meters that can help monitor and control your vessel’s fuel consumption accurately – while improving its performance and keeping the costs down.

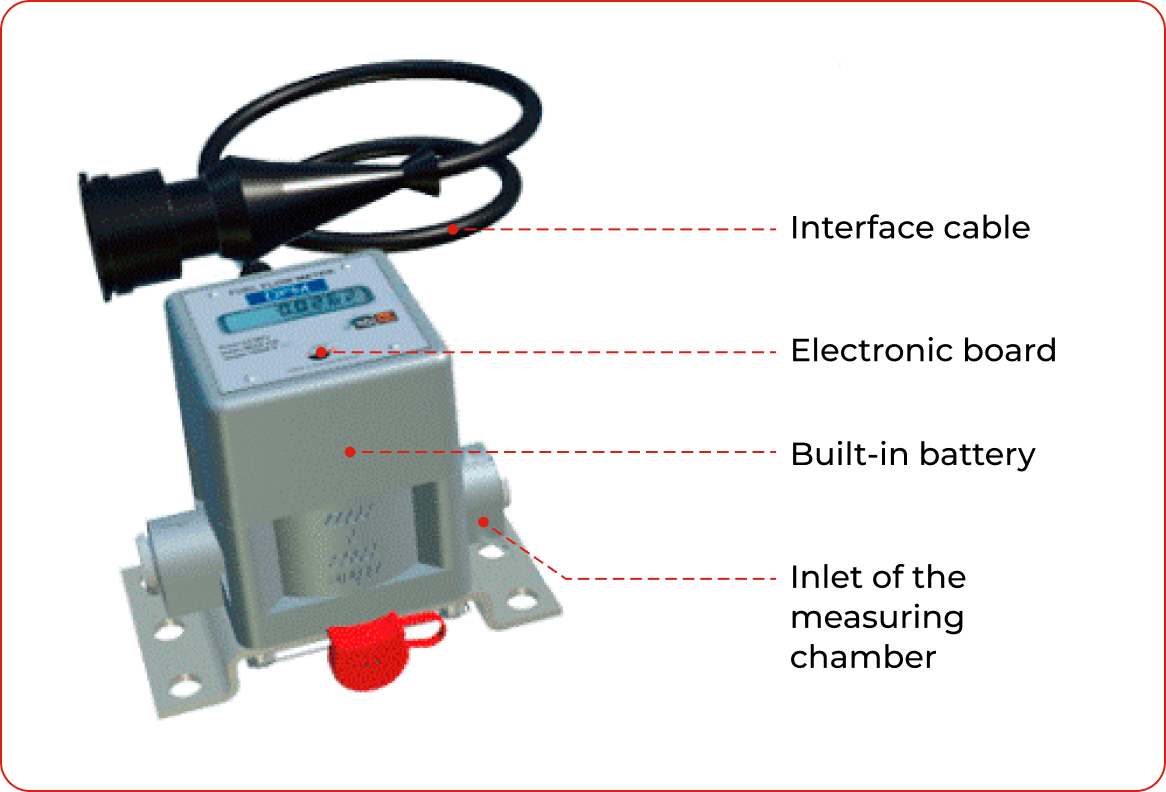

Understanding Marine Fuel Flow  Meters and Gauges

https://escortsensors.com/wp-content/uploads/2026/03/2668d2d51fc13623d8c0abe96fbc0fb3.png

You might have heard it all the way – “Fuel flow meters are essential for your marine journey.” But you wonder what exactly a marine fuel flow meter is.

Fuel flow meters for boats and marine ships are a device that measures the accurate fuel usage rate of the vessel’s engine. Marine operators can also use the flow meter to monitor the fuel oil consumption rate of a transactional metering device. When used in addition to our state-of-the-art fuel level sensors, it plays a pivotal role in maintaining the fleet’s fuel efficiency, reducing overall costs and protecting the environment.

The global marine fuel management market size is poised to grow at a rate of 4.4% from 2023 to 2031, standing at $9.2 billion by the end of 2031. And fuel flow meters form an essential component of efficient fuel monitoring and management. They are devised to withstand extreme marine environments, providing accurate measurements even when exposed to vibrations, sea water or harsh temperatures.

So, how does a marine fuel flow meter work? Let’s understand here.

The device typically comes with a measuring chamber that features a ring-type design and influences both the robustness and accuracy of the flow meter. When the device experiences fuel pressure, it causes the ring of the measuring chamber to slide seamlessly along the inner surface and the web. This aids in precise measurements.

The ring ejects the fuel from outside and inside the measuring chamber and through the outlet, pushing it towards the nozzle. In return, the ring expels the same volume of fuel as that in the chamber. On the other hand, the meter’s electronic board will generate an output impulse as the fuel passes through the device. By calculating the difference between 1 litre of fuel and the chamber volume, you can precisely determine the required fuel flow.

This data is then collated with the tank’s fuel level measurements captured by our fuel flow sensor for marine applications. The telematics unit will process all the data and break down the fuel consumption information to present it in the form of reports. Modern fuel flow meters and sensors are digitalised, transmitting the recordings via Bluetooth technology and GSM for remote monitoring. The presence of GPS trackers also enables marine fleet operators to track their vessel location in real-time.

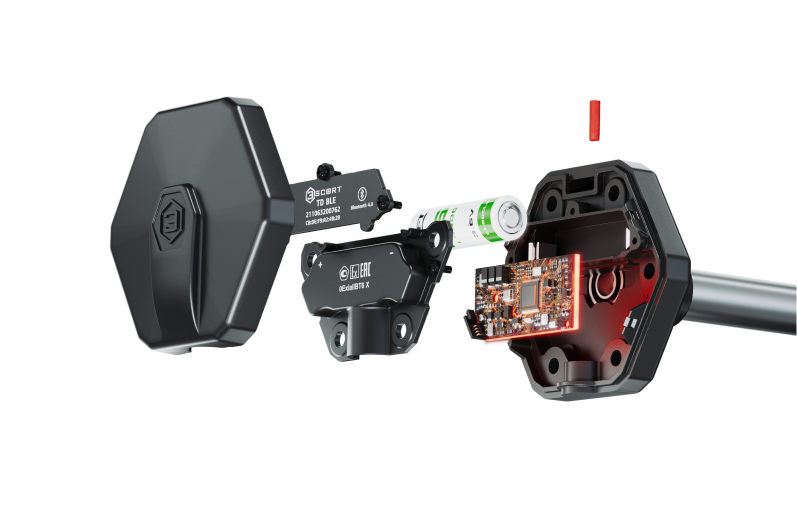

Benefits of Monitoring Fuel Flow on Boats

https://escortsensors.com/wp-content/uploads/2026/03/frame-1-2.png

Effective fuel monitoring in the marine industry comes with unique challenges. Luckily, boat fuel flow gauges and meters are engineered to tackle the problems head-on. Check out the advantages of using this indispensable device to monitor fuel flow in boats and large vessels.

Real-time fuel consumption monitoring. Monitoring your boat’s fuel usage is now simpler and hassle-free! Install  a robust flow meter in combination with our wireless fuel level sensor, Escort TD-BLE, to get real-time information on fuel consumption. This will help you to plan your vessel’s fuel needs and effectively manage resources.
Boost Fuel Efficiency. The meters are designed to deliver fuel usage data with an accuracy level  of almost 99.5%. This enables you to optimise marine fuel efficiency, reduce your operational costs and contribute towards environmental protection.
End-to-end fuel management. Integrating flow meters and our marine fuel level sensors into your fuel management system can take your monitoring abilities to the next level. Together, the devices provide a comprehensive overview of fuel usage across different parts of the vessel or your boat, facilitating data-driven decision-making and increased profitability.
Regulatory compliance. As maritime regulations and sustainability norms get stringent, having precise fuel usage data can help you improve efficiency, reduce wastage and stay compliant.
Timely maintenance. The flow meters can help identify changes in fuel consumption patterns, so you can detect potential engine or fuel tank issues early. This enables you to schedule maintenance  on time, preventing breakdowns and higher costs.
Save costs. By monitoring your boat’s fuel usage in real-time, you can identify inefficiencies in fuel management and implement strategies to optimise your operations. This can lead to remarkable cost savings as you can boost fuel efficiency, minimise wastage and trim down unnecessary expenses.

Fuel flow meters are installed in the boat’s fuel system and only provide data on total fuel consumption. They cannot record information on fuel drains, refuelling or residues. So, if you want to detect potential fuel theft and pilferage, it is recommended that to install a fuel level sensor from Escort Monitoring Systems Group. This will help you keep a tab on fuel levels in your boat or the entire fleet, identifying unexpected drops and drainages easily.

Selecting the Right Marine Fuel Flow Meter

Choosing the right type of marine fuel flow meter is integral to optimising your marine operations and controlling fuel costs. However, there are various types of flow meters available today and finding the right one for your operations may seem daunting. We are here to help! Discussed here are some important factors you should consider:

1. Fuel type

Not all flow meters will be compatible with the type of fuel you use for your boat or marine operations. The inability to choose an appropriate one may result in inaccurate fuel usage readings and inefficient performance. Therefore, it is crucial that you choose a meter that is ideal for the type of fuel your boat or ship uses – heavy fuel oil, marine diesel oil, marine gas oil, liquid natural gas, biodiesel, etc.

2. Fuel flow rate

The flow rate may vary depending on the type of fuel you use, its properties and certain other factors. The fuel flow rate indicates the amount of fluid passing through the flow meter at any given time. If the rate is high and the meter isn’t compatible with handling it, you will get inaccurate fuel consumption readings. It may also impact the optimum functioning of the meter. Therefore, you should choose a meter that can efficiently handle the boat’s fuel flow rate.

3. Fuel thickness

The viscosity of the fuel, or its thickness, is another important factor you should consider when buying fuel flow meters  for boats and ships. It has a direct influence on how efficiently the device works. So, it should ideally match the fuel’s viscosity level.

4. Fuel system parameters

Since a flow meter is installed in the vessel’s fuel system,  it should align with other components and settings.  For instance, the type and size of the meter should be in line with the diameter of your existing fuel pipe. Unless the device fits properly, it cannot give accurate readings. The flow meter should also be efficiently engineered to withstand the vessel’s operating conditions such as temperature and pressure.

5. Determine the Right Output Interface

The output interface of a fuel flow meter is responsible for transmitting fuel consumption data to the user for remote monitoring. Depending on your needs, you can choose between analogue output signals, digital interface or direct integration with your fuel monitoring system. The choice will depend on how efficient you want fuel monitoring to be.

These are some of the essential factors to consider when choosing a marine fuel flow gauge or meter.

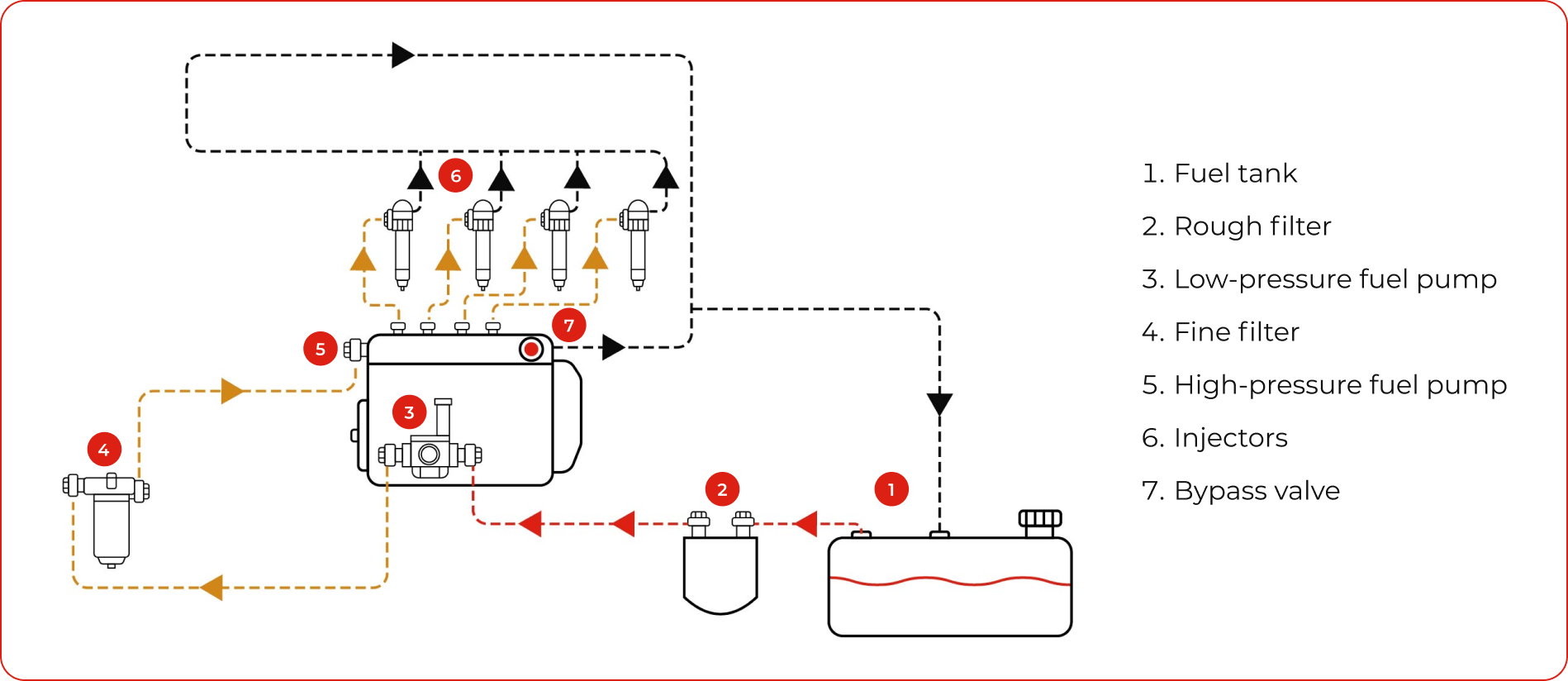

Installation and Maintenance of Marine Fuel Flow Systems

https://escortsensors.com/wp-content/uploads/2026/03/04ac40115b55ada4fe8072fadbd6540f.png

Regardless of the type of flow meter you choose, the installation process involves the following important steps.

Before installation, you must ensure stable and smooth operation of the vessel’s engine for about 5-10 minutes at idle  and with load. It is crucial for the engine to run consistently with no power loss.
Check all the fuel lines to detect leakage or any other damage.
Use a pressure gauge to capture the pressure in your vessel’s fuel line. This will help you get precise readings under different operating conditions like maximum speed or idling.
Determine the possible location of installing the flow meter, avoiding areas with high temperature and vibrations.
Follow the manufacturer’s instructions carefully to install the entire marine fuel flow meter kit, including new fuel lines and other components.
You may consider installing a fuel deaeration system to prevent air bubbles from entering the fuel line and hindering  the readings.
Set up a new fuel return line based on the type of flow meter you choose and its installation scheme.
Connect the fuel flow meter to a laptop and onboard power supply using an adapter. Digital flow meters use a GSM modem to facilitate wireless connections. You can then configure our fuel level sensor using our free mobile application.
Disconnect the meter from your computer device and use a cable route to tie an interface cable. The opposite side  of the cable route will connect to a GPS tracker. In wireless meters, Bluetooth technology aids the connection process  and not cables.

It is worth mentioning here that fuel flow meters in ships and large vessels need the longest installation time – and you should have an expert technician to complete the process. It is also crucial to maintain your fuel flow meter regularly to ensure optimum performance. Here are some valuable tips for you:

Thoroughly inspect the flow meter at regular intervals to detect signs of loose connections, physical damage  or contamination. Correcting these anomalies on time can help ensure optimum performance.
You should also follow manufacturer guidelines to regularly clean the flow meter to get accurate readings.
While a fuel flow meter does not require calibration, you should check for exposure to environmental factors like extreme temperature, vibrations, etc.

Conclusion

When you use hi-tech and accurate marine fuel flow meters, it gives you in-depth insights into your vessel’s everyday fuel consumption. Whether you own a boat for recreational purposes or an entire fleet of vessels, this information may be handy in determining how you sail “fuel-efficiently” and identifying ways to save more money. The device will also show you changes in fuel usage patterns when you make improvements such as hull cleaning, allowing you to make informed decisions.

Combine this with fuel level sensors from Escort Monitoring Systems Group and you can take marine fuel management to the next level!! This means more efficient operations, reduced wastage, improved sustainability and better cost savings.

Book a demo!

Frequently Asked Questions

How can a marine fuel flow meter help me save fuel on my boat?
By installing a marine fuel flow meter, you can get direct measurements of your vessel’s fuel consumption in real-time. Upon monitoring this data, you can identify potential inconsistencies in fuel usage patterns and take appropriate actions to reduce wastage. By improving fuel efficiency, you can save fuel consumption and your costs too.

Are marine fuel flow meters difficult to install?
Installing marine flow meters is a complex and time-consuming process, considering the intricacies of the fuel system in boats and large vessels. Consider using a wireless flow meter with advanced GPS tracking capabilities to streamline the installation and monitoring process.

Can a fuel flow sensor marine be used on any type of boat?
You should choose the fuel flow sensor for marine applications based on the type of fuel your boat uses. A sensor that is designed for gasoline engines will not perform optimally or will show inaccurate readings in a diesel engine.

How accurate are marine fuel flow gauges?
It is important to note that even a 1% deviation in fuel consumption readings may result in significant fuel wastage over time. Make sure you choose a marine fuel flow gauge that assures high accuracy levels of up to 99.5%.

What maintenance is required for a marine fuel flow meter?
Since marine fuel flow meters undergo heavy wear & tear, you should pick one that comes with shell shock protection and can withstand extreme conditions. However, you should avoid installing the device in areas with high temperatures or vibration. Regularly check the meter for corrosion or other physical damages, and clean it efficiently to get accurate readings.

How long does the installation process take?
If all preparatory tasks are completed before starting the installation, setting up the fuel sensor and GPS tracker should take
no longer than three hours. This timeframe includes sensor and tank calibration, and integrating the fuel sensor with the GPS tracker.

Can drilling a tank be safe?
Drilling a fuel tank is entirely safe if specific precautions are taken, such as emptying the fuel tank beforehand. It’s also crucial
to release any vapors in the tank, especially if the vehicle runs on gasoline rather than diesel. Furthermore, the Escort fuel level sensor is certified for explosion protection, making it suitable for transporting explosive goods.

Will drilling a tank lead to losing warranty?
Vehicle manufacturers generally offer warranties for the engine but not for the fuel tank. Additionally, the fuel tank
is constructed from aluminum, making it quite delicate. As a result, fleet technicians have to replace the fuel tank every six months due to numerous incidents. Frequently, the fuel tank gets damaged when the driver maneuvers a semi-trailer over high curbs.
