Where Is the Fuel Level Sensor Located in a Vehicle? Complete Guide

https://escortsensors.com/wp-content/uploads/2026/03/5305771657543146945-1-e1734941450480.avif

Learn where the fuel level sensor is located in your vehicle, how it works, and why it’s crucial for accurate fuel monitoring. Find out common locations and tips for checking and maintaining your sensor.

Effective fuel management is one of the biggest challenges faced by fleet managers. This is where fuel monitoring comes in to help. Fuel monitoring, using the latest and most advanced fuel level sensors, provides you with the information required to stay on top of your fleet’s fuel consumption. A fuel tank level sensor is a valuable device for fuel monitoring. It is designed to measure fuel levels with high precision. When combined with GPS tracking, this sensor can keep you up-to-date with the current fuel level status.

https://escortsensors.com/wp-content/uploads/2026/03/photo_2026-03-16_16-33-30.jpg

Whether you want to install a new fuel level sensor or replace the existing one with more effective ones, you will need to know the fuel gauge sensor location. This guide provides you insights into fuel gauge sensor location in a vehicle.

Learn more about TD Online – Brand new Fuel Level Sensor + GPS Tracker.

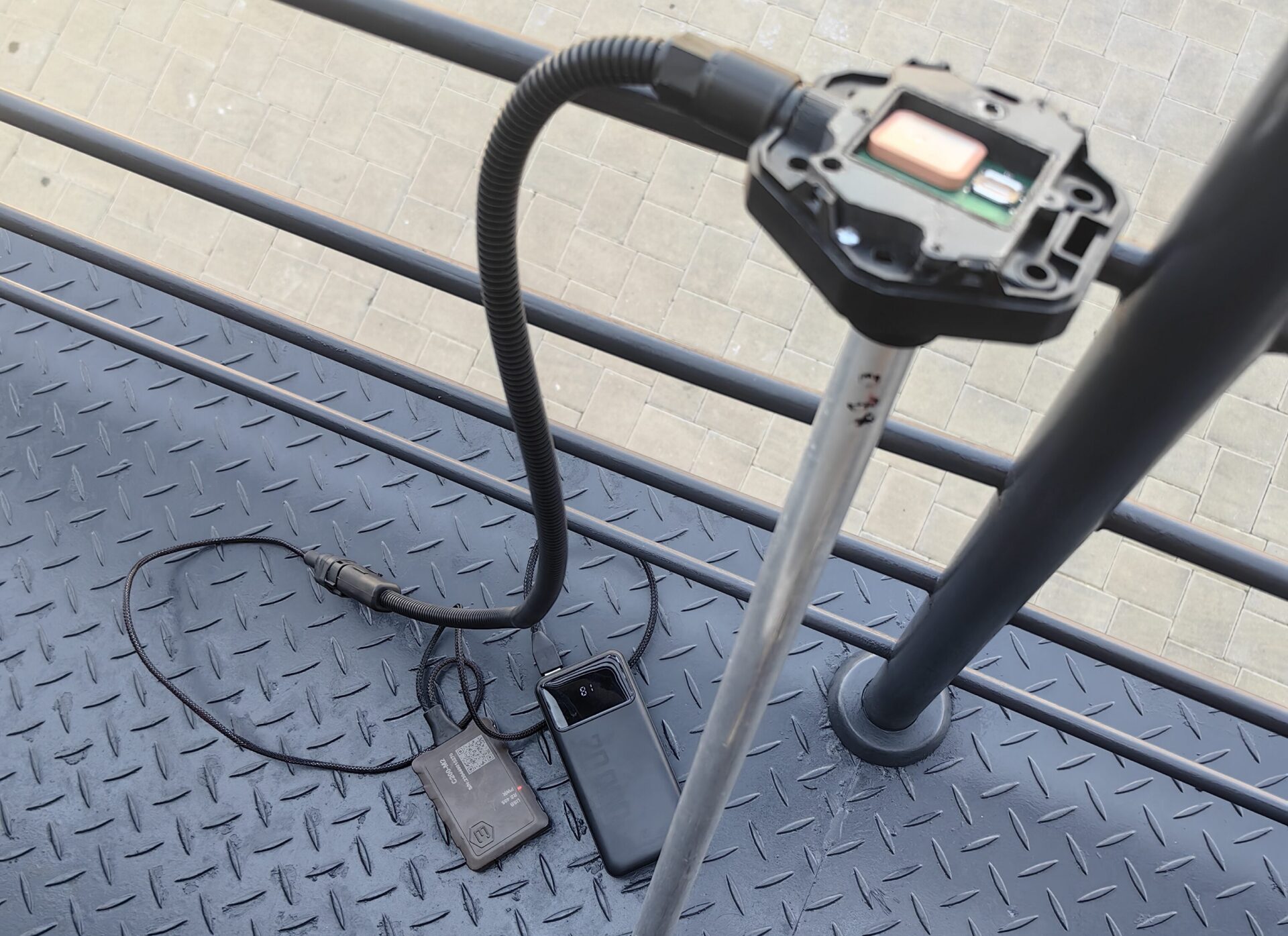

How does the fuel level sensor work?

https://escortsensors.com/wp-content/uploads/2026/03/img_20240614_113747-e1734943138661.jpg

There are many different types of fuel sensors. Each type works on a slightly different principle, but the basic functioning is the same between all the sensors.

These sensors are typically mounted on the fuel tank. They are attached in a way that their sensitive elements are fixed either to the tank or in contact with the fuel. As mentioned above, the sensors work in different ways to gather fuel level data.

A typical fuel tank level sensor works by measuring the voltage across a variable resistor. This voltage variation depends on the amount of fuel in the tank. Many interior parts in the sensing system work together to find the amount of fuel in the tank.

On the other hand, capacitive fuel sensors measure the changes in electrical capacitance to determine the fuel levels.

During installation, the fuel level sensor is set up as per the tank’s size and depth. It will be calibrated to detect fuel level values. Once the fuel level sensor in the fuel tank is installed, it is configured for your vehicle.

Where is the fuel level sensor located?

The fuel tank level sensor is usually installed around the fuel tank or inside it.

Common locations in the vehicle

https://escortsensors.com/wp-content/uploads/2026/03/medium-shot-men-checking-truck.jpg

As mentioned above, the fuel level sensor in the fuel tank is the most common location. They are usually attached to the measuring tube. The latter can be found at the tank’s top center or the side.

All the different places the fuel level sensor can be located include:

Interior bottom of the tank
Designed into the fuel pump assembly
On the side of the fuel tank

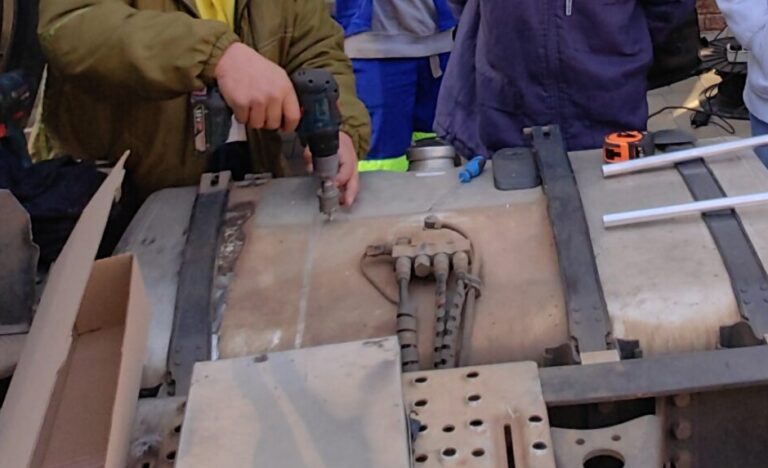

How to access the fuel level sensor?

https://escortsensors.com/wp-content/uploads/2026/03/img_20240614_102243-e1734944798777-768x468-1.jpg

The fuel tank level sensor is usually attached inside, on the side, or on top of the fuel tank. Sensors located on the top can, at times, be difficult to find.

If the fuel level sensor is located inside the tank and at the bottom, it can be difficult to access. The sensors placed on the side of the tank are relatively easier to access. Sometimes, the sensor has a separate housing inside the tank for mounting it. This design also makes it easier to access and remove.

Fuel level sensors types

Resistive sensors, ultrasonic sensors, and capacitive sensors are the most commonly used fuel level sensors.

Resistive sensors

https://escortsensors.com/wp-content/uploads/2026/03/side-view-men-looking-inside-truck.jpg

A resistive fuel tank level sensor features a float connected to a variable resistor or potentiometer that moves with the changes in fuel levels. Since fuel level changes cause changes in resistance, the voltage also changes. These sensors have a basic design. They can work with different types of fuel management systems and are highly cost-effective. Resistive sensors are mostly used in cars, small boats, and motorcycles.

Ultrasonic & capacitive sensors

Man in uniform. Truck repair. Car malfunction

Many fleet operators prefer ultrasonic fuel level sensors for monitoring fuel consumption. These sensors feature a wire connection with a GPS tracker, working as an ultrasonic transmitter. They are placed on the fuel tank’s bottom outer wall and send out ultrasonic impulses.

The impulses move from the bottom to the fuel surface and then return. The transmitter receives the reflected signal and calculates the fuel column’s height based on the time of flight. The readings are sent by the GPS tracker to the monitoring platform.

Capacitive fuel level sensors are popular with fleet owners. A capacitive fuel tank level sensor is basically an electric capacitor. The construction and working of a capacitive fuel sensor are as follows:

It features two tubes that work as the measuring system
One tube lies within the other tube
Both tubes work as capacitor plates
The tubes are electrified and connected to the sensor at one end
The tubes are inserted inside the fuel tank and are filled
The fuel acts like a dielectric for the capacitor
When the fuel fills in the space between the tubes, there is a change in electrical capacitance
More fuel in the tubes causes faster capacitor charging
The time taken to charge the capacitor is used by the sensor to measure the height of the fuel column
The GPS tracker then transmits the fuel level sensor a circuit high data to the central monitoring platform

Now that you know about the features and benefits of different types of fuel level sensors, you can choose the right one for your vehicle.

Frequently Asked Questions

Where is the fuel level sensor?
A fuel tank level sensor is usually located near or inside the fuel tank.

Where is the fuel gauge located?
On the question of where the fuel gauge is located, the answer is usually the dashboard. It is most found within the instrument cluster near the speedometer and other gauges.

Can I replace a faulty fuel level sensor myself?
Yes, it is possible to replace a faulty fuel level sensor yourself. However, it is a job that requires certain technical skills. In the best interests of your vehicle, it is recommended to have it replaced by a professional.

What are the signs of a faulty fuel level sensor?
A stuck or erratically-behaving fuel gauge or an illuminated check engine light or malfunction indicator light can sometimes be caused by a faulty fuel level sensor.
