“Hayted” – one of the leading engineering companies in the field of autonomous and backup powersupply, energy-efficient technologies and service in the territory of CIS countries.

“Energy Efficiency” – one of the activities of the group associated with the development and introduction of modern technologies for the effective control and management of engineering systems of enterprises, in particular – of autonomous systems and backup power by means of diesel generators (DGs).

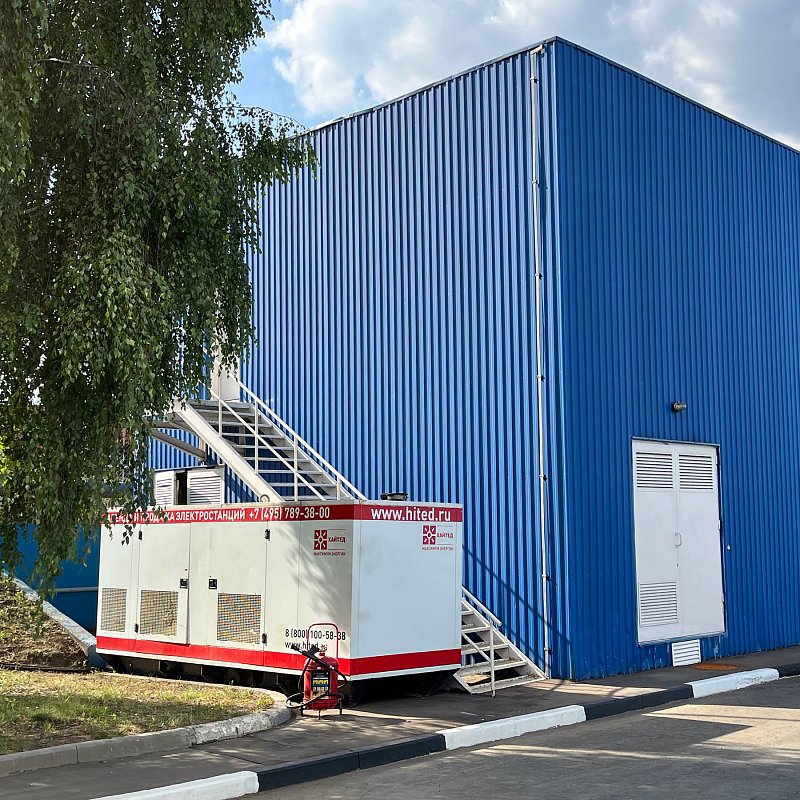

The company “Hayted” provides solutions on the basis of diesel generator sets since its establishment – since 1999. Exploiting its own fleet of diesel generators and providing after-sales service, more than 10 years ago there emerged a necessity of addressing the problems of remote monitoring and management of DGs. An important role in this is played by controlling the level of reserve fuel and its consumption.

Task 1: Tracking the performance of all

“Energy efficiency”, the company has developed a universal platform for monitoring and remote control – RedPine. Based on extensive experience of operating of diesel generator power plants fleet, on the basis of a universal platform a number of products for monitoring and remote management of any type of diesel generators have been developed.

https://escortsensors.com/wp-content/uploads/2025/12/Служба_аренды_ДГУ_Хайтед.jpg

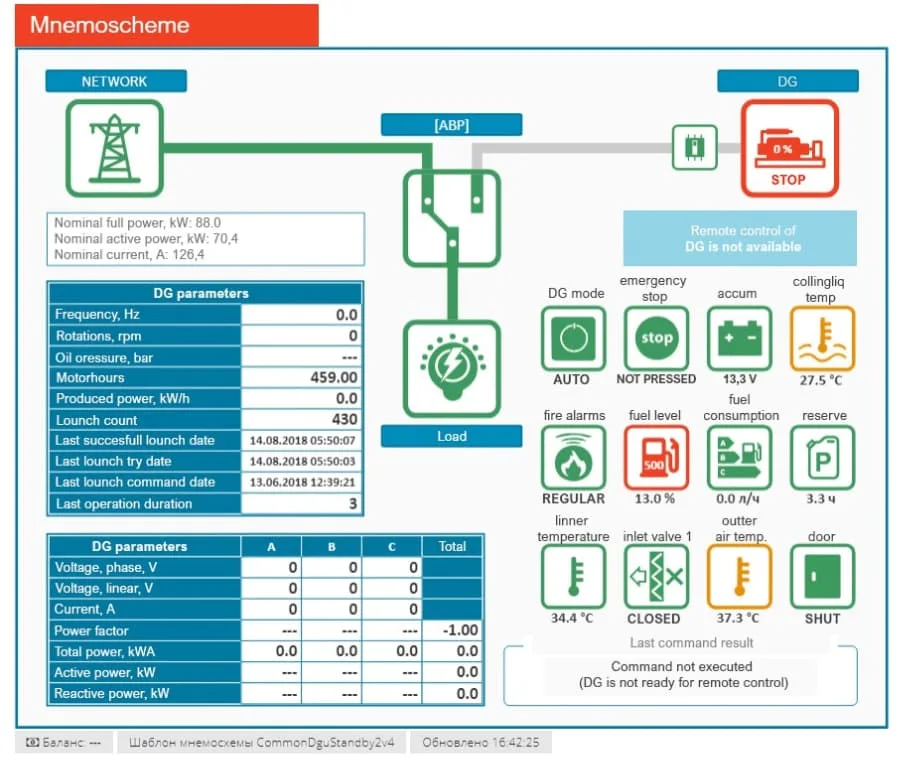

One of the most important advantages is the capability to display uniformly a large variety of equipment such as a DG fleet, consisting of units of different manufacturers, different models and different generations. The fact is many of “Energy Efficiency” clients operated diesel generators of different manufacturers, purchased at different times and from different suppliers. RedPine copes well with such problems.

https://escortsensors.com/wp-content/uploads/2025/12/image-17-2-jpg.webp

Task 2: Remote control and the launch of diesel generators

RedPine devices are mounted on the objects and provide the necessary data from the monitored systems, standardizing and transmitting

them to the higher level system, including the unstable and not always fast channels, such as the cellular network. The customer can choose –either to transfer the data to its own monitoring system or use a cloud platform – Remote Monitoring Centre (RMC) RedPine. You can transfer the data in both directions. A separated cloud RedPine RMC can also be deployed on the client basis. On request, the remote control of the monitored object may be allowed. For example, the remote start is available for diesel generators.

Task 3: Monitoring the fuel level and consumption, selecting and installing reliable fuel level sensor

In the current (already the second) generation of monitoring devices

https://escortsensors.com/wp-content/uploads/2025/12/image-18-1-jpg.webp

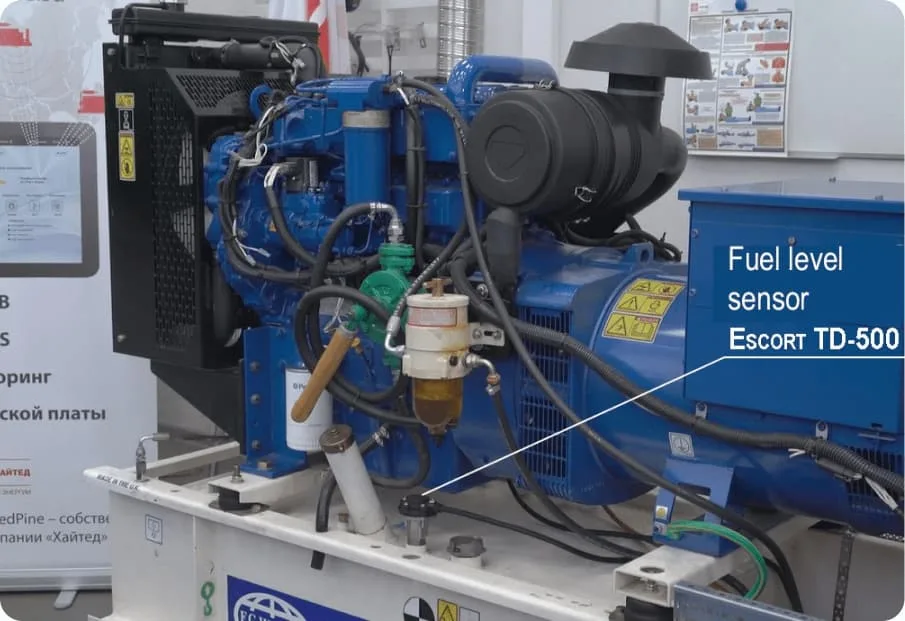

“Energy Efficiency” mainly uses fuel level sensors Escort TD-500. Previously the sensors of other producers were used, which worked on different physical principles. Capacitive sensors turned out to be most convenient and versatile after all. For the installation of capacitive sensors on pipe fittings of DGs tanks, the specialists of “Energy Efficiency” developed a special transition adapter.

Learn more about TD-500

https://escortsensors.com/wp-content/uploads/2025/12/image-19-2-jpg.webp

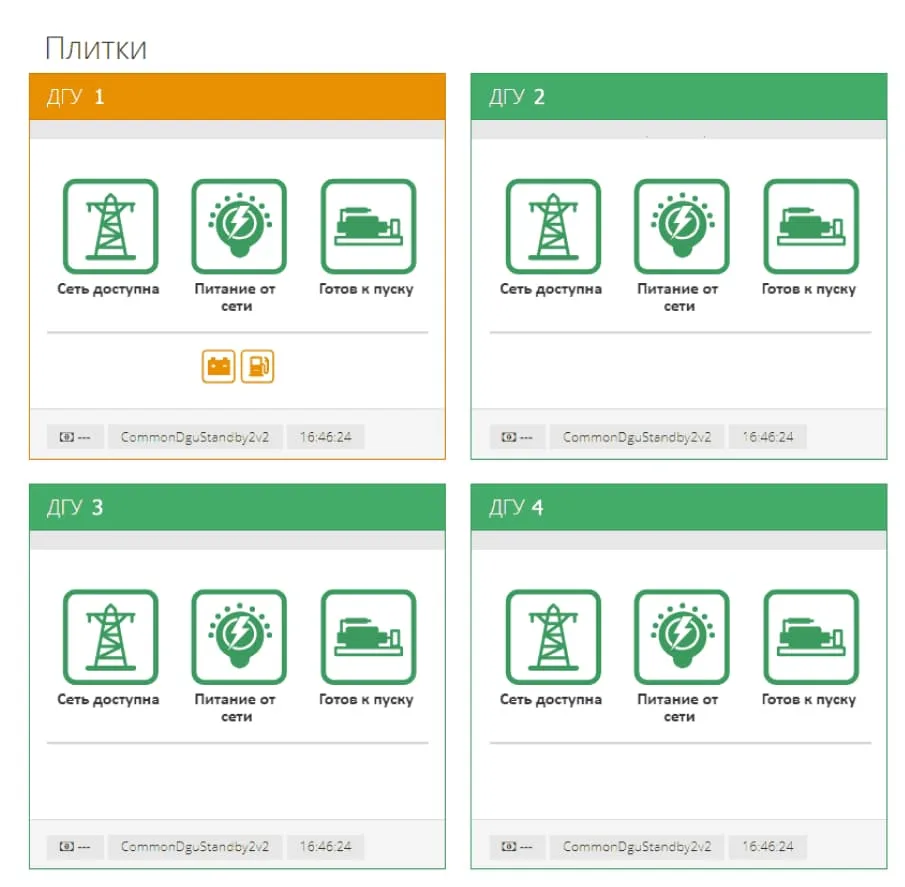

Task 4: Is the diesel generator able to provide power supply during mains failure?

Properly conceived and implemented monitoring system allows the customer to improve the quality and transparency of the operation of engineering equipment without increasing costs significantly. For example, for a diesel generator backup it is important to understand that the unit is ready to provide

electricity facility at the network crash. For this RedPine device continuously assesses a number of indicators, and the supply of fuel is one of the key influencing the status of preparedness of a DG for autonomous operation.

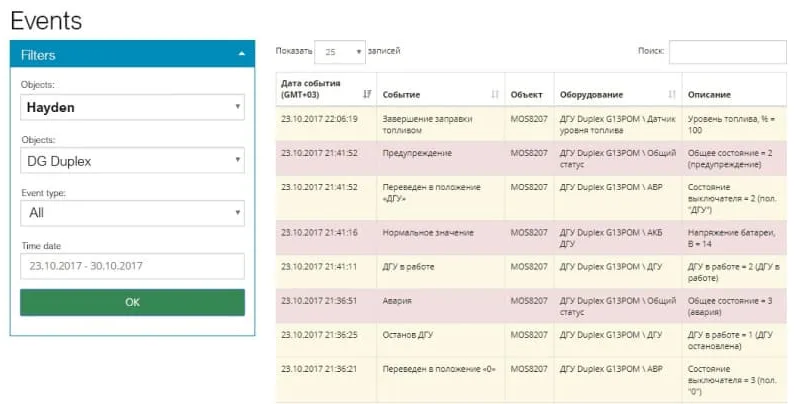

Task 5: Calculating the operation time of a diesel generator set and power reserve

https://escortsensors.com/wp-content/uploads/2025/12/image-20-1-jpg.png

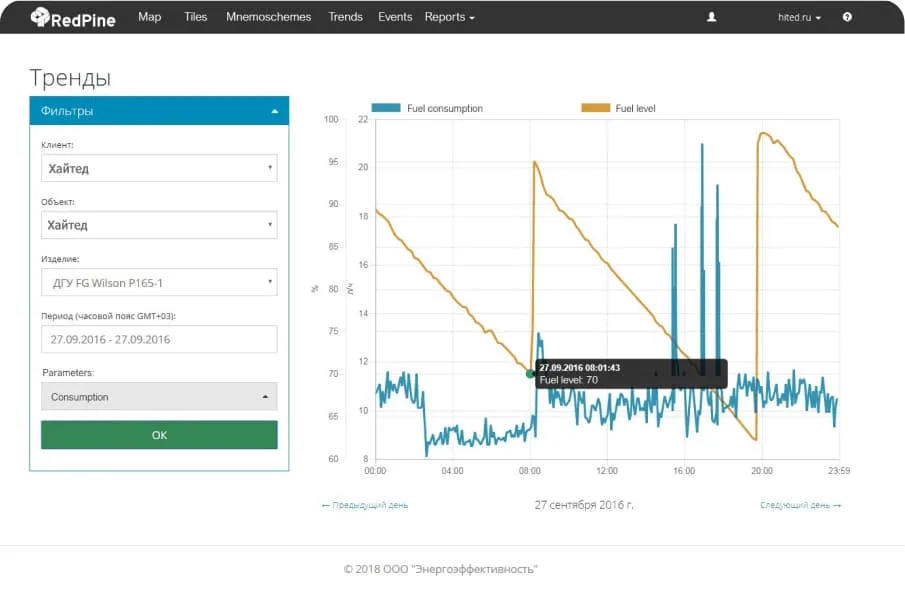

When the DG is stopped, Redpine device calculates how long the diesel generator is able to work on the existing fuel in the tank at a certain level of load. On the running DG, the device calculates a power reserve of fuel at the current level of load. This allows, in particular, more accurate planning of refueling stations and avoiding an emergency stop.

https://escortsensors.com/wp-content/uploads/2025/12/image-21-1-jpg.webp

Task 6: Convenient reports on fuel consumption

Proper monitoring system provides the customer the data in a convenient and understandable form,

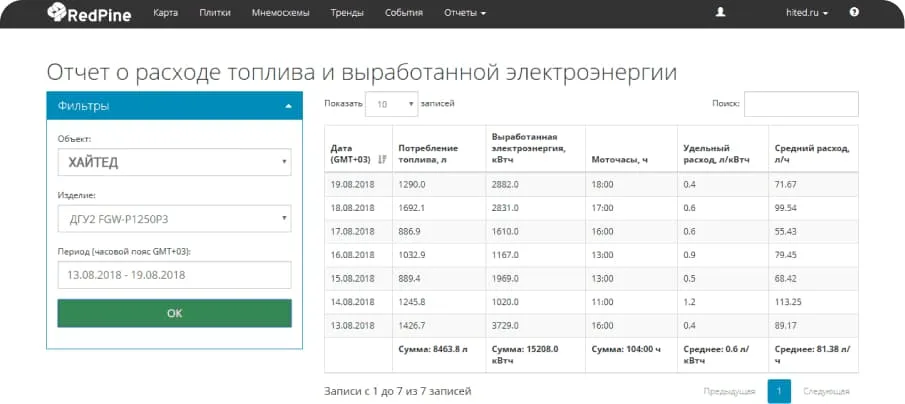

not burdened with unnecessary or irrelevant information. In terms of control, remote monitoring center RedPine provides useful reports on consumption of diesel generator fuel. These data can be used for further analysis of the condition of the diesel generator and prevent theft.

Expert opinion

“We chose Escort fuel sensors for convenience and versatility, the ability to adjust the sensor height to the height of the DG tank on site during installation. Another important factor for us is supporting

https://escortsensors.com/wp-content/uploads/2025/12/image-22-jpg.webp

protocol Modbus RTU, allowing you to connect it to one bus with other equipment, such as the DG controller’s panel. Escort provides good quality performance and low defect rate “- Mikhail Saltykov, executive director of the company “Energy” of “Hayted” holding.

Future plans

Fuel level sensors, after the height adjustment and installation require calibration procedure. To do this, customers need to temporarily connect the sensor to PC via the corresponding interface converter and perform the sensor configuration using special software. Now the company “Energy efficiency” is working on the integration of the Escort sensors protocol in the software of RedPine device to make the configuration process more convenient.

With the beginning of the application of fuel level sensors Escort TD-500 diesel-generator sets served by “Hayted” holding now it’s possible to:

Calculate the reserve of diesel generator set
Assess the readiness of the DG to autorun
Prevent theft of fuel
Reduce the cost of maintenance of the generating set
